Parametric skirt pattern file for an individual figure. The pattern is designed for an asymmetrical figure, i.e. if the difference in measurements between the left and right parts of the body is more than 1 cm. The pattern does not take into account elasticity coefficients, so it is designed for sewing with stiff fabrics.
Together with the drawing you get a file with individual measurements.
There are 2 back darts on the back parts - a main dart and an extra dart. Additional back dart can be considered if total back dart opening is calculated over 4-5 cm or as per pattern.
Rear main dart location is defined manually according to the measurements. In the table of variables, the position of the additional dart back is established manually and the distance is measured from the main back dart.
Dart sizes for extra back darts are also entered manually in the table of variables.
Angle of slope for front and back darts is set perpendicular to the waistline, but can be changed in the drawing if needed.
Precise seam allowances are plotted on the front and main rear darts, taking into account folding and tucking the darts on the fabric toward the middle of the front and rear skirt fabrics.
The table of preliminary calculations shows the full calculation of all the solutions of skirt darts, widths of 4 skirt cloths (separately for the right and left halves), the distance between the ellipse centers of the waist and hips (HO1 and AA1) for the exact drawing.

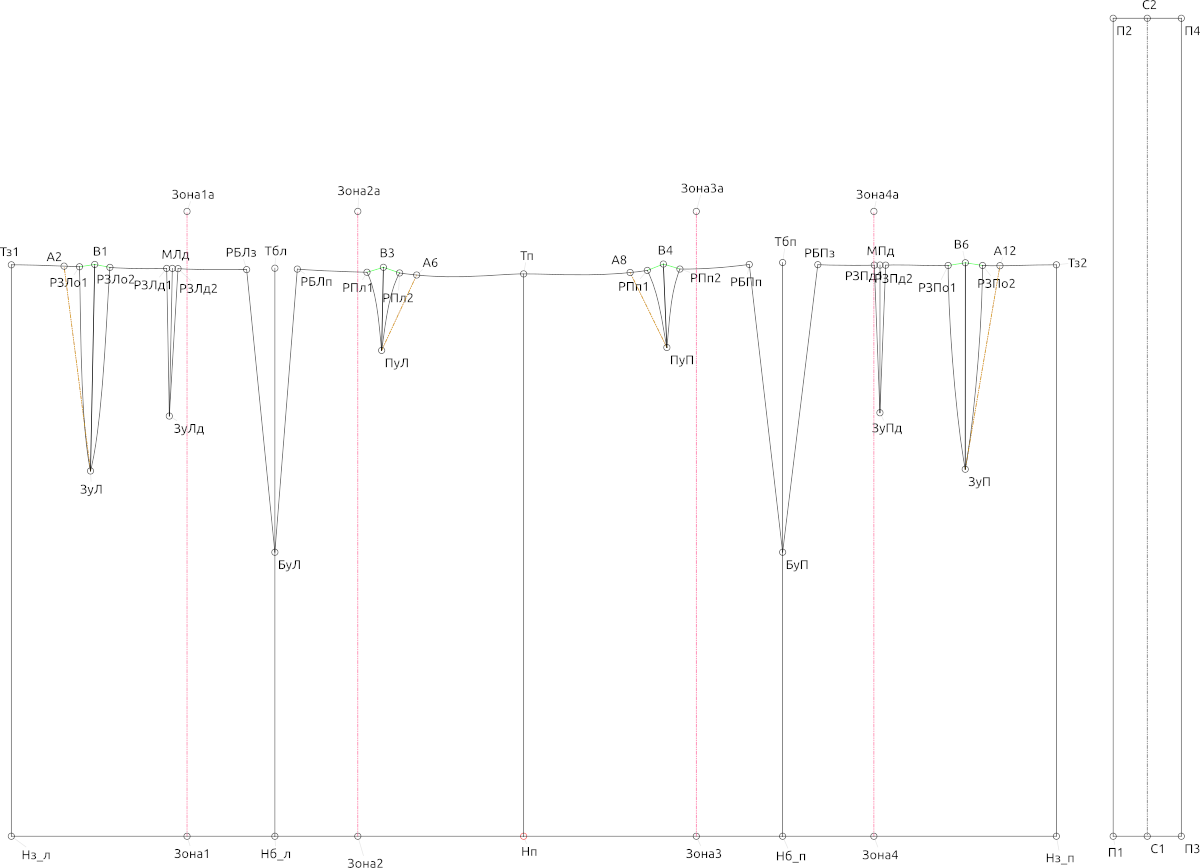

The skirt drawing is divided into zones: front, side and back. Within these zones, you can move the darts that correspond to these zones.

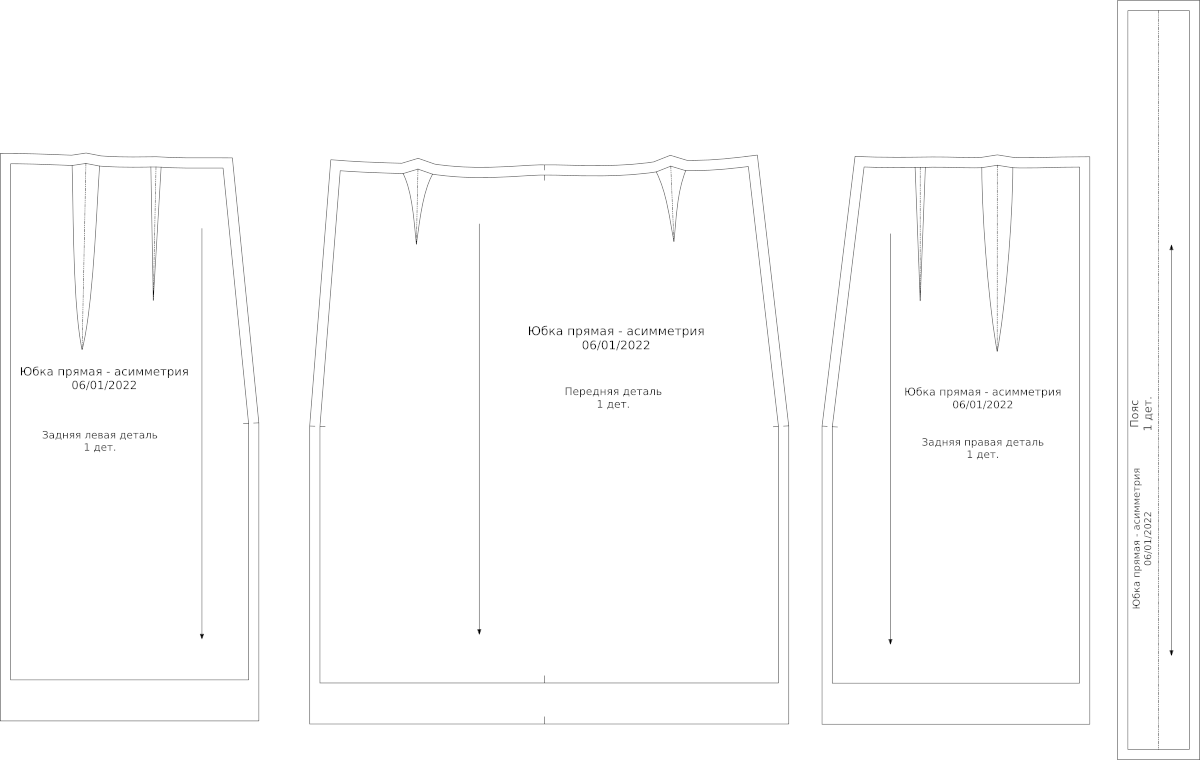

In pattern mode, the following details are created: front, back left, back right, waistband. All patterns are created on a full rotation. All patterns are marked with notches, seam allowance, marks on the grain axis, pattern marking and pattern marking.
The final measurement table checks the waist and hip circumferences constructed in the drawing.
The conditional operator, max function, line reflection tool, circle intersection point and other tools have been applied to the drawing.
You can use this base as it is or you can apply further modeling.
|Price (excl. tax)||$6.88|
|Price (incl. tax)||$7.22|
|Pattern making system||"The Genetics of Cut" by Galiya Zlachevskaya|
|Number of reviews||0|
Product has no updates
This product does not have any reviews yet - be the first to write one.
