The base base of a straight skirt according to the design method of the CNIIShP (russian language)

  • The base base of a straight skirt according to the design method of the CNIIShP (russian language)
  • The base base of a straight skirt according to the design method of the CNIIShP (russian language)

The base base of a straight skirt according to the design method of the CNIIShP (russian language)

$5.39

Available

Write a review



Product Description

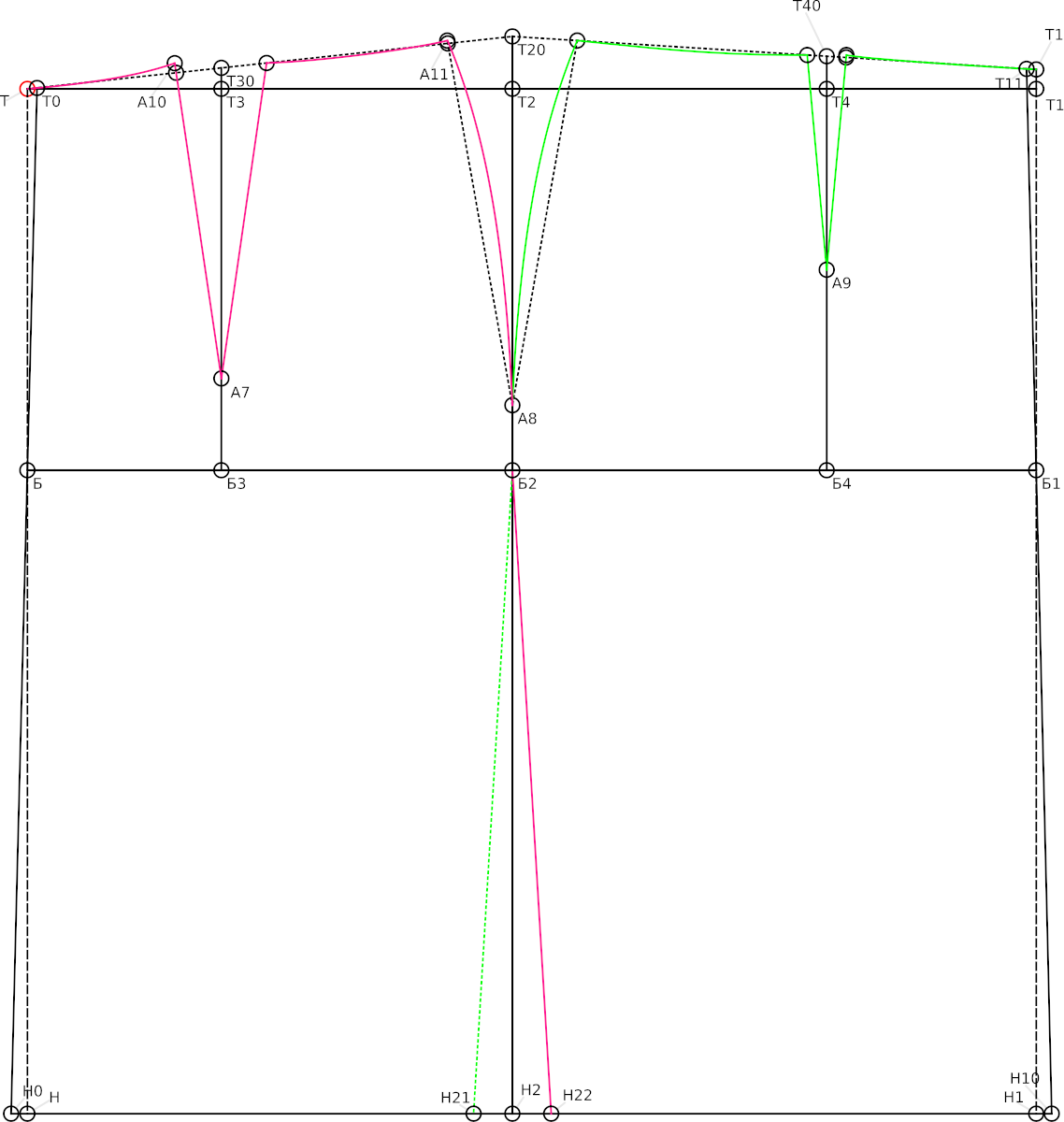

For the construction of the drawing of the base was used the method of construction CNIIShP.

The base is built without allowances for seams and hems on a typical figure with the basic dimensional features Height - 164 cm, chest circumference - 96 cm, waist circumference - 100 cm.

This drawing is intended for use as a basis for modeling. And also for a visual example of work in the program Valentina.

The drawing shows the case for widening the skirt bottom line, as well as a skirt with a seam or pleat in the middle.

To draw a straight skirt the following measurements were used:

  • St - Half waist circumference;
  • Sb - Hip circumference;
  • Dts - Waist length of the back;
  • Vlt - Height of the waistline;
  • Bk - Height of the knee point;
  • Dsb - Distance from the waistline to the floor at the side;
  • Dsp - Distance from the waistline to the floor at the front;
  • Dtk - Distance from waist line to the knee point.

In constructing the drawing, the tool notes were added, tools were used: "Visibility Groups", "Reflect along line", "Point along line", "Point at end of segment", "Curve", "Tool to make a point from x and y two other points".

There are no details and no layout in the drawing.

You will be provided with a drawing file, 3 women's type measure files and a file (recipe).

Warning. This base has not been sewn.

Product Information

UPCPA_W_0000011
Product TypePattern
Price (excl. tax)$5.13
Price (incl. tax)$5.39
Tax$0.26
Availability Available
Language Russian 🇷🇺
Pattern making system CNIIShP
Valentina's version 0.7.x
Number of reviews 0
