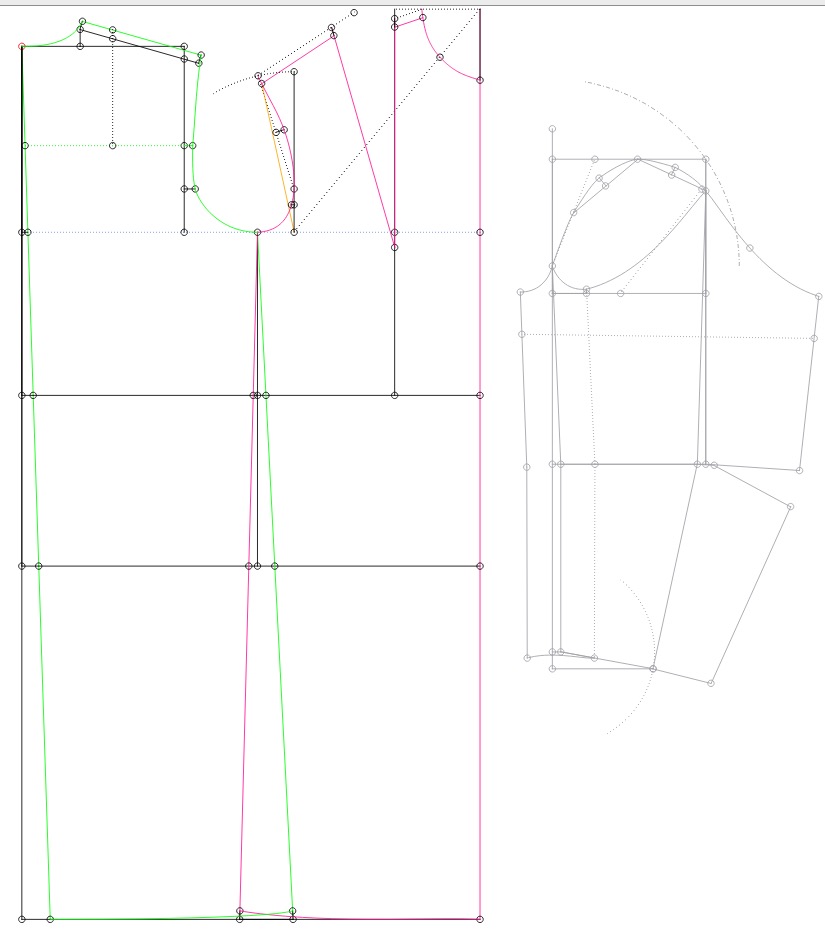

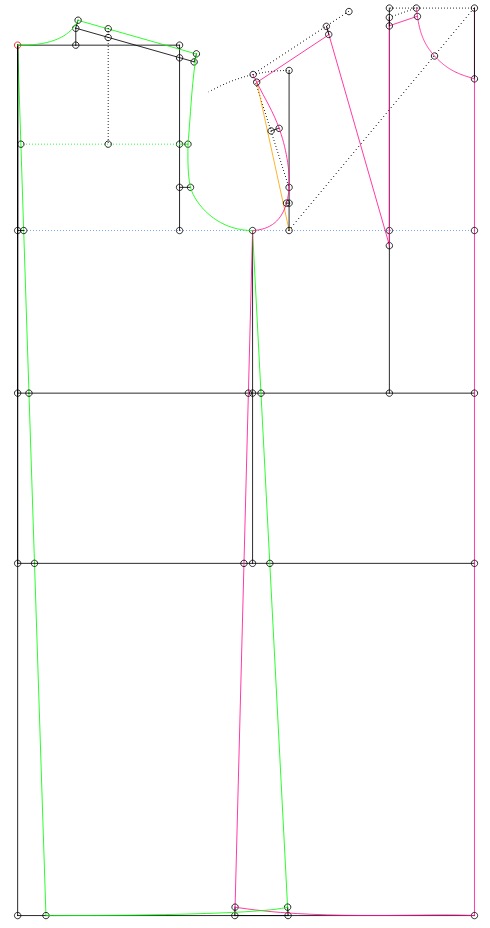

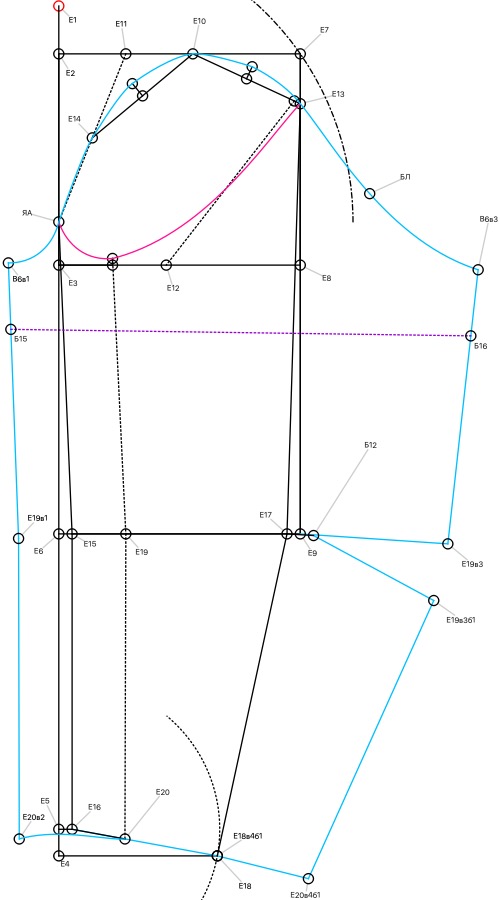

A parameterized pattern file of the pattern base. The pattern shows the adaptation techniques of M. Muller & Son methodology in Valentina. The base is the basis for modeling straight and widened silhouettes. This design has a number of features. Absence of adjacency in the waist and hips. Elongation of the armhole front and back (already at the stage of design). Breast notch has a reduced opening, which makes the product straight silhouette looks more harmonious. The back of this design needs to be lengthened in the shoulder blades (after drawing) to ensure proper fit of the product. The design of this drawing is made according to the dimensional features from the table of standard female's figures. The base takes into account the optimal fit increments, shows the use of conditional operators with local variables, the function warning(), visibility groups, work with the tool "Rotate", "Reflect on the line" and many others. The possibility of making notes to the selected tools and objects was used in the construction of the base.
This base was built on a conventionally-typical figure. There are no details of the dress and sleeve drawings in the file. Only the drawings themselves. Along with the file, three files of individual measures are provided to demonstrate the parametrization work.
Along with the pattern you will also get a generated instruction in PDF format that describes all the steps of drawing by an example of one of the measurements.
This base pattern was not sewn. The purpose of this base is to show the possibilities of the Valentina program.
